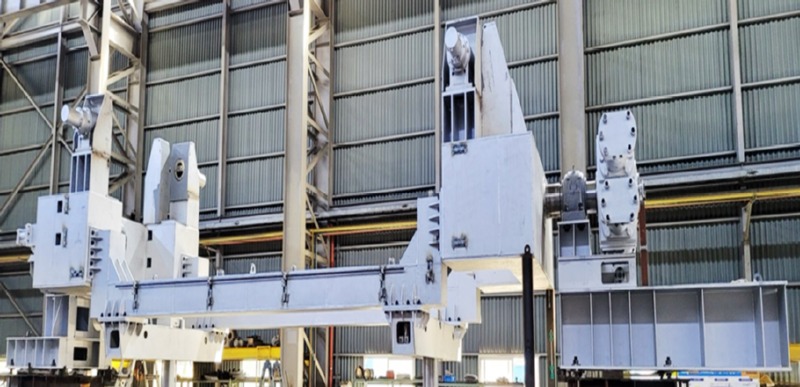

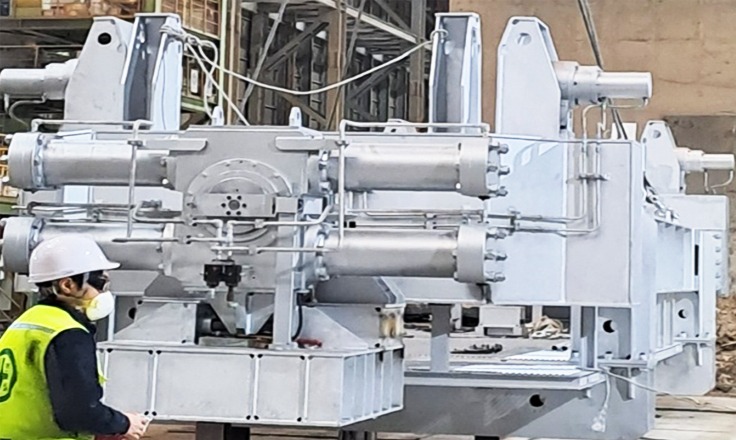

The Tilting M/C (Tundish)

1) Base &Guide frame

: Weld construction

2) Clamping unit

- Position

: 4 Point,

- Type

: Hyd’ cylinder

- Safety sensor

: Pressure switch

3) Locking unit

- Point hole

: 3 Holes(0°, 90°,180°),

- Type

: Hyd’ cylinder &Locking pin

4) Driving unit

- Tilting torque

: App’ 25 ton-m,

- Tilting speed

: Max 0.4RPM

- Tilting angle

: 0°, 90°,180°,

 - Working pressure

: 160 Kg/㎠

5) Hyd’ control unit

- Pump

: Piston pump(Variable control)

- Pump motor

: 15 Kw x 6p x 3 ph

6) Electric control unit

- Type

: Self dustproof type

- Electric power

: AC 440V, AC110V

- Control method

: PLC control

- Safety system

: Clamp &Locking inter-lock
