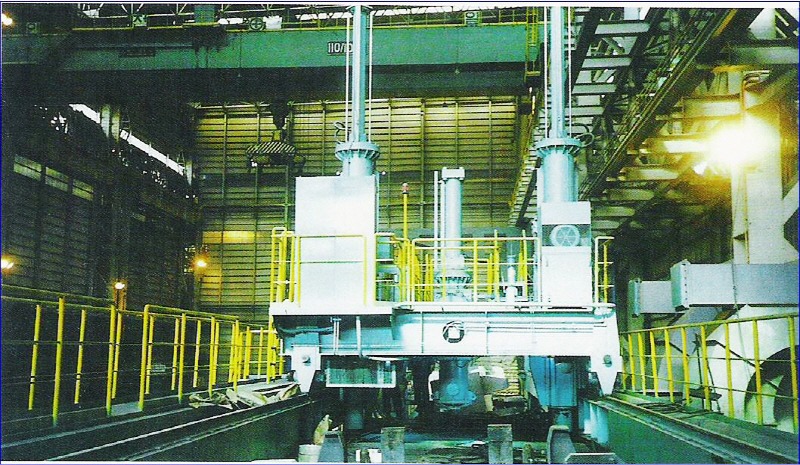

The De-Skulling M/C (Tundish)

1) Travelling unit

- Travelling speed

: High speed : App’ 5 M/min /Low speed : App’ 13 M/min

- Travelling motor

: 2.2Kw, Cycloid motor, Inverter control

- Power feeding device

: Cable-reel or Cable duct

2) Push rod unit

- Type

: Hyd’ cylinder

- Q’ty

: 2Sets

- Pushing force

: 50 ton/each

- Push rod speed

: About 35mm/sec

- Sliding table

: Hyd’ cylinder

- Sliding speed

: Front and rear: App’ 250mm, Right and left: App’ 500mm

3) Back-up clamp unit

- Type

: Hyd’ cylinder

- Q’ty

: 4Sets

- Clamp speed

: About 35mm/sec,  - Clamp swing angle : 90°

4) Cabin: Operation deck, Air conditioner, Sight glass &Door

5) Hyd’ control unit

- Pump

: Denison pump

- Rated pressure

: App’ 140 Kg/㎠

- Max. pressure

: Max 210 Kg/㎠

6) Electric control unit

- Type

: Cabin

- Electric power

: AC440V, AC110V

- Control method

: PLC control

- Safety system

: Back-up &Push rod inter-lock Light, Patrol lamp, Siren
