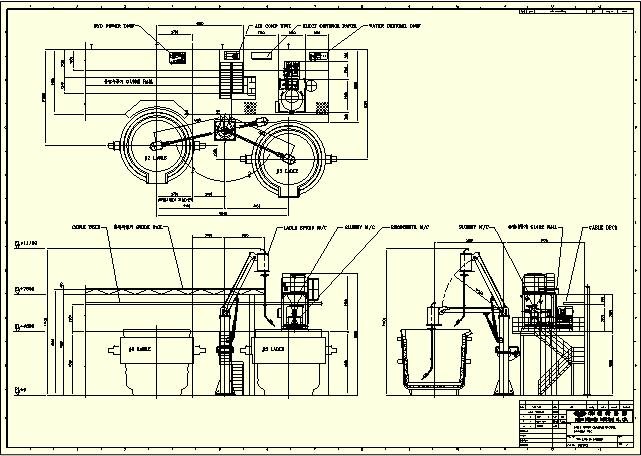

The Spray Repair M/C (Ladle)

1) Slurry m/c

- Hopper capacity

: 1.6 M3, Valid weight 3Ton

- Refractory Feeding capacity

: 40L/min

- Slurry feeding capacity

: 30L/min

- Slurry feeding pressure

: Max 40 bar, valid pressure 25 bar

2) Spray m/c

- Boom slewing velocity

: Max 1 RPM

- Boom swing angle

: Max 270˚

- Boom tilting velocity

: 15 mm/sec

- Boom tilting angle

: Max 70˚

- Lance swing velocity

: 1 ~ 5 RPM, Adjustable

- Lance swing angle

: 360˚ Endless

- Lance tilting velocity

: 25 sec/20°

- Lance tilting angle

: 20˚

- Slewing / swing actuator

: Hyd’ motor

- Tilting actuator

: Hyd’ cylinder

- Spray capacity

: 30L/min

- Valid Spray distance

: Max 500 mm
