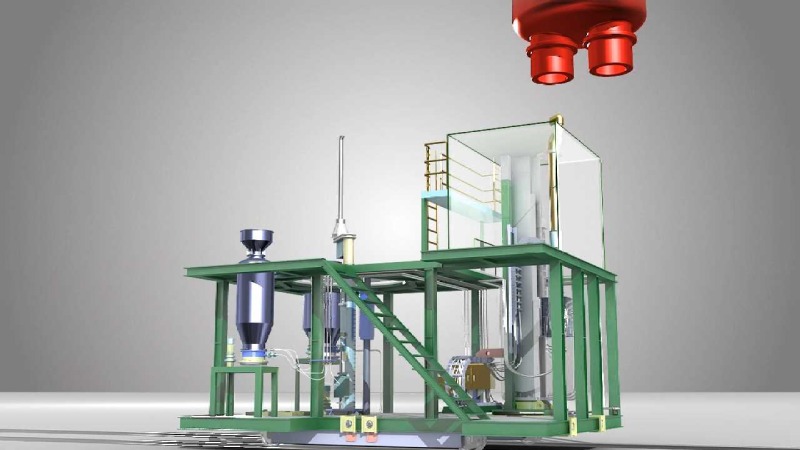

Auto spray gunning M/C(R&H.OB)

1) Spray capacity

: 15 ~ 30 Kg/min, adjustable

2) Coating thickness

: 5 ~ 10 mm/way

3) Travelling speed

: Max 20 M/min, adjustable

4) Turntable speed

: 0.5 ~ 1 RPM

5) Turntable angle

: 180˚

6) Lance elevating unit

- Lift capacity

: Max 1200 Kg

- Up &Down stroke

: 2400 mm, Inner lance, 1400 mm, Outer lance

- Elevation speed

: Max 6 M/min

7) Outer lance

- Lance turning angle

: 300˚

- Lance turning speed

: 3 ~ 6 RPM, adjustable

8) Inner lance

- Nozzle turning angle

: 360˚ endless

- Nozzle turning speed

: 3 ~ 6 RPM, adjustable

9) Material hopper tank

: 1 M3

10) Material feed rate

: 10 ~ 40 Kg/min, adjustable

11) Water pump capacity

: 45 ℓ /min

Auto-flame gunning M/C(R&H.OB)

1) The shooting capacity

: 250 Kg/hr

2) Used fuel &Gas

: LNG &O2 gas

3) The temperature of flame

: 2300 ℃

4) Max. using time

: Max 30 min/time

5) The internal temperature of the furnace

: 1200 ℃

6) Travelling speed

: Max 20 M/min, adjustable

7) Turn table speed
